 SilverLining Solutions
Small and Large Bore Spray Lining

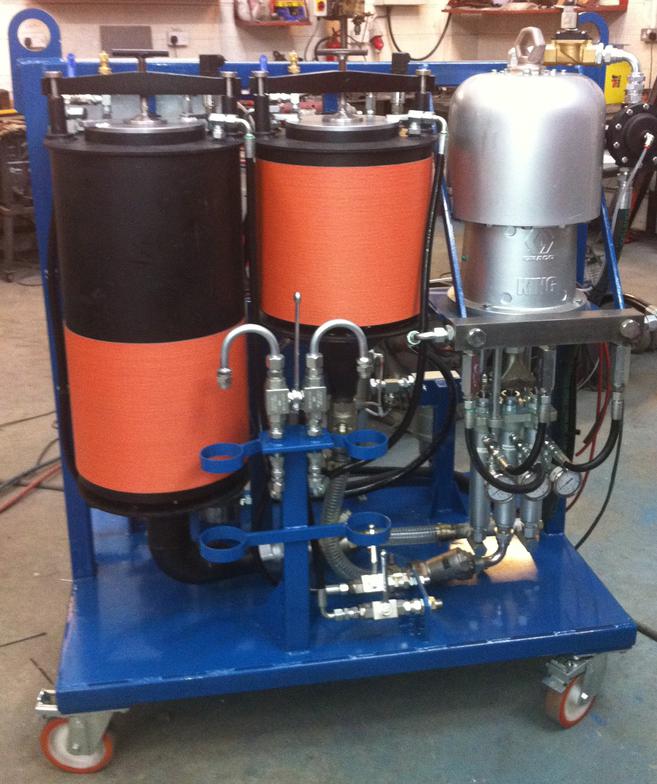

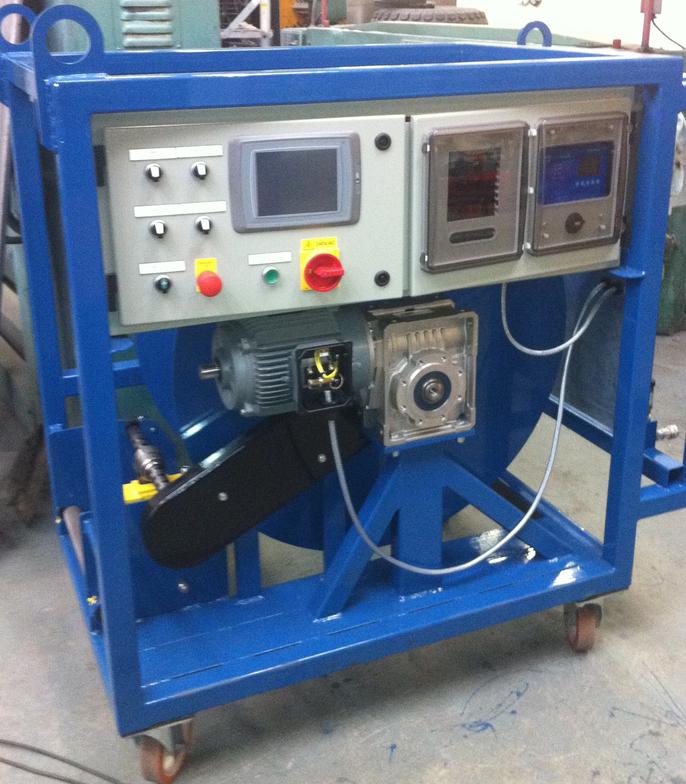

Our advanced robotic spray systems provide
 unprecedented speed and precision for epoxy
 and ceramic polymer application.

Line pipes from 1 ¼” to 36” diameter pipe.

Allows for precise application of different mm thicknesses of epoxy or polymers, even in the same pipe.

Portability allows use in high rise and low rise buildings.

No need to reinstate lateral connections

Cured-in-Place Technology (CIPP)

Cured in place materials mold to the host pipe. This seamless pipe prevents infiltration and exfiltration, restores structural integrity, eliminates joints that can weaken and allow root intrusion. Cured in place pipe actually increases flow capacity because the lined pipe is much smoother than old clay and concrete pipe.

SilverLining Technology has the experience and technical knowledge to specify the right thickness and right resins to meet your specific needs regardless how deep the pipe or how corrosive the environment.

CHANGE IN DIAMETER PIPING

Expandable material gives installers the capability to change diameter sizes from 4" (100 mm) to 6" (150 mm) anywhere in the line. Our change of diameter tube gives you a full strength liner in both sizes without compromising the integrity of the pipe.

CIPP Pipe Lining Process

Cured in place CIPP Pipelining Technology

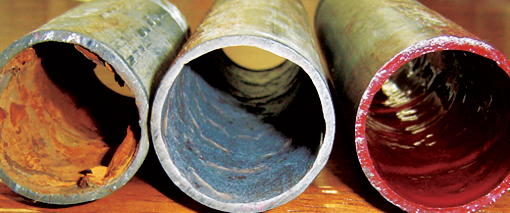

Before, Cleaned and Lined Pipes
          Before                              Cleaned                                   Lined
